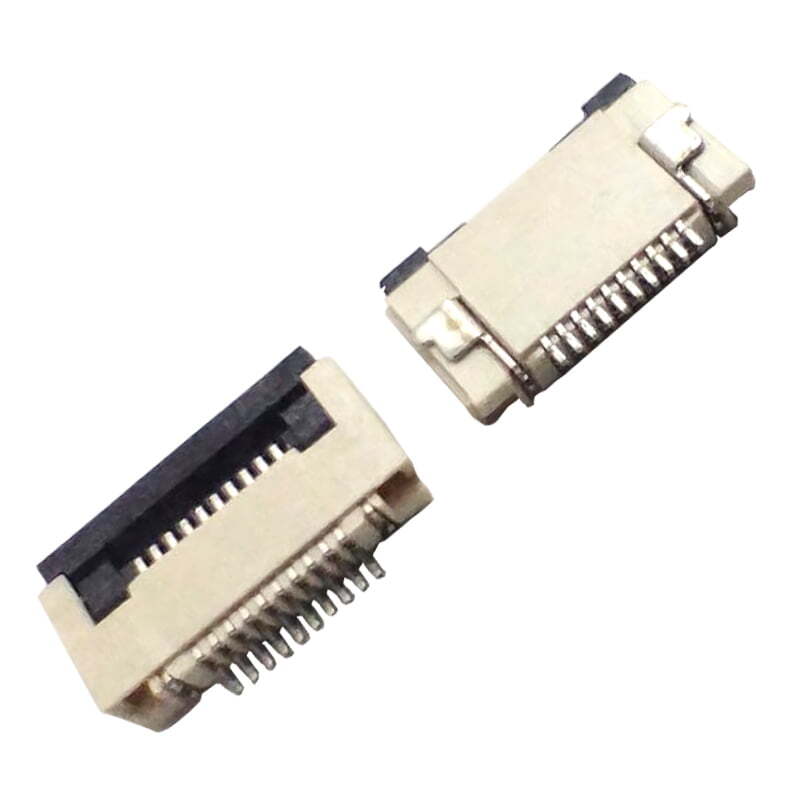

10-Pin 0.5mm Pitch FPC/FFC SMT Bottom Contacts Flip Connector

Secure Connections with a 10 Pin FFC Flip Connector

Loose ribbon cables cause intermittent device failure and data loss. Traditional connectors are often hard to lock or damage the cable during insertion. This 10 Pin FFC Flip Connector uses a ZIF mechanism to hold wires firmly. It ensures a stable data path because it applies even pressure across all pins. You can now repair smartphones or laptops with total confidence.

Advantages of the FFC SMT Flip Connector

The FFC SMT Flip Connector is designed for high-density electronic layouts. It provides a low-profile interface while also saving valuable board space. Since it features a flip-lock design, the installation is quick and secure. This 10 Pin FFC Flip Connector is ideal for modern gadgets that require reliable internal wiring. It minimizes the risk of the cable slipping out during movement.

Industrial Grade Build Quality

This component features high-temperature plastic for safe reflow soldering. The bottom contacts provide a reliable electrical path for sensitive signals. It remains durable while also allowing for multiple cable insertions without wear. This 10 Pin FFC Flip Connector is perfect for compact electronic repairs and DIY projects. It offers a professional-grade solution for any surface-mount application.

Features & Benefits

• Flip-Lock Actuator – Provides a secure mechanical lock for the ribbon cable.

• 0.5mm Pitch – Matches the standard high-density spacing for modern FPC cables.

• SMT Mounting – Designed for easy surface-mount soldering on any PCB.

• ZIF Technology – Allows for zero-force insertion to prevent cable damage.

Technical Specifications

Compatibility Table

Installing Your FFC SMT Flip Connector

Always open the latch fully before inserting the cable into the 10 Pin FFC Flip Connector. This ensures the FFC SMT Flip Connector grips the contacts perfectly every time.
