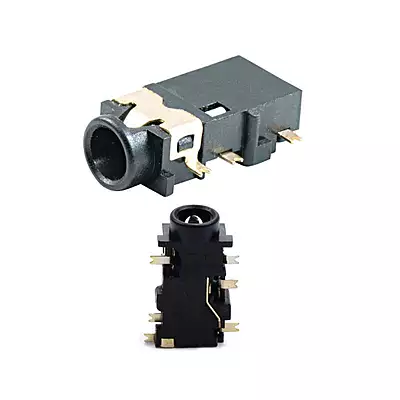

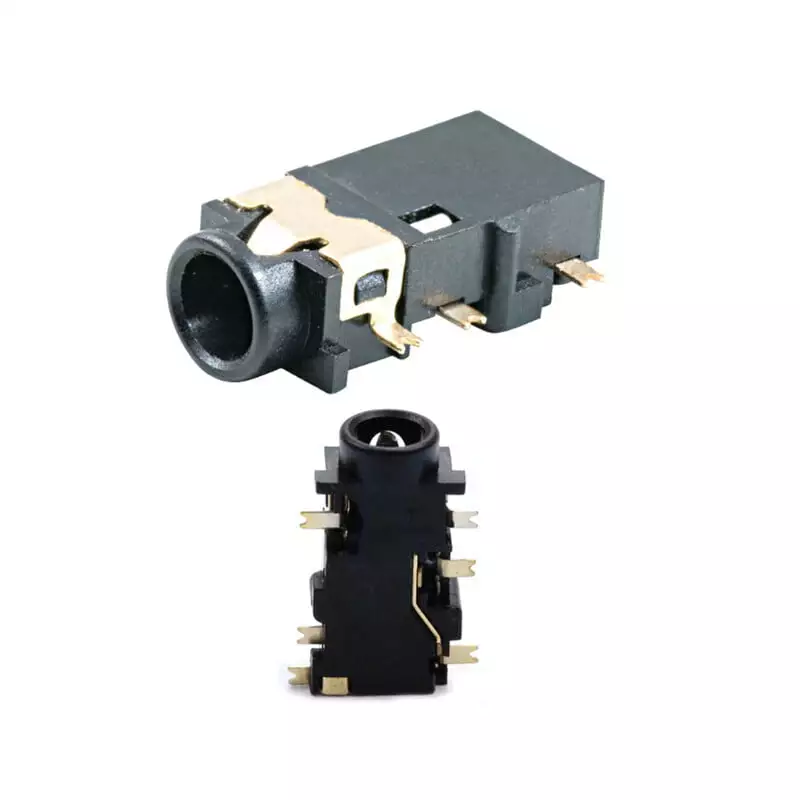

3.5mm Female Audio Jack Connector 5-Pin Headphone Jack Socket (SMD, PJ-342C)

Compact Design with the 3.5mm Female Audio Jack Connector

Standard audio jacks are often too bulky for modern, slim electronic devices. This 3.5mm Female Audio Jack Connector features a surface-mount (SMD) design to save valuable PCB space. Because it is compact, it is perfect for portable gadgets and micro-electronics. You can now integrate high-quality audio into small projects so your designs stay sleek.

Precision for the 3.5mm audio jack connector

The 3.5mm audio jack connector (model PJ-342C) is engineered for high-efficiency manufacturing. It specifically uses a 5-pin layout to provide both audio signals and switch detection. Since it is an SMD component, it allows for automated assembly on modern circuit boards. Using this 3.5mm audio jack connector helps you maintain a low-profile hardware design.

Durable SMD Performance

This 3.5mm Female Audio Jack Connector is built to withstand the heat of reflow soldering. While through-hole jacks take up more room, this SMD version offers a more modern solution. Also, the internal springs are made of high-quality metal to ensure a tight fit. Specifically, this 3.5mm Female Audio Jack Connector provides a reliable connection for years of use.

• SMD Mounting – Saves space on your PCB for a more compact device design.

• 5-Pin Configuration – Supports stereo sound and automatic jack detection features.

• PJ-342C Model – A standard footprint that is easy to integrate into modern circuits.

• Heat Resistant – Designed to handle industrial soldering processes without damage.

Technical Specifications

Compatibility Table

Buy the 3.5mm audio jack connector

The 3.5mm audio jack connector is the best choice for modern, space-saving electronic builds. A working 3.5mm Female Audio Jack ensures your device remains functional and portable. Purchase your 3.5mm Female Audio Jack now for your next SMD project.
