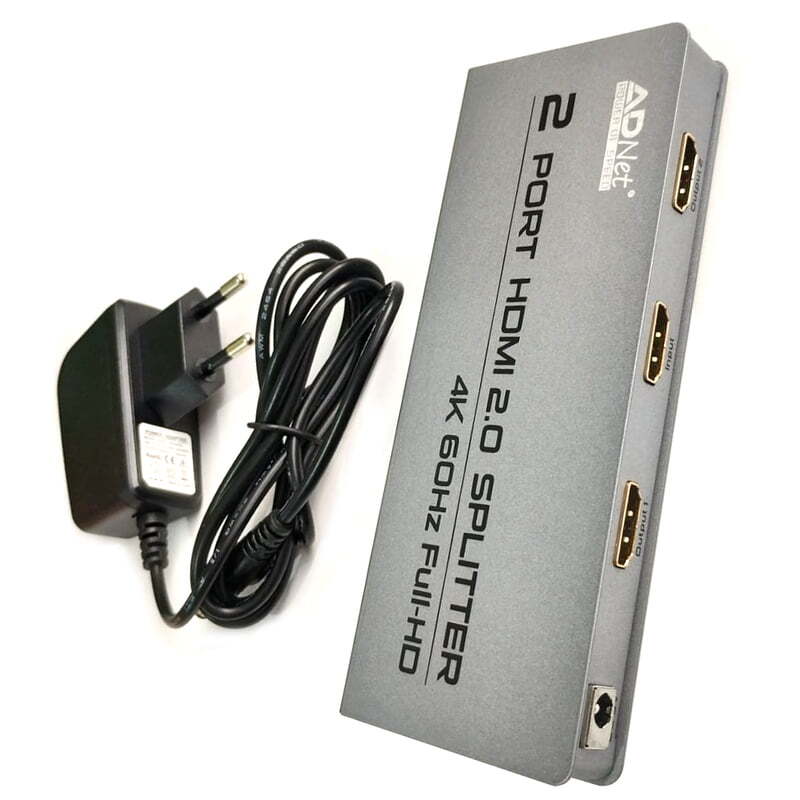

2.0 4K HDMI Splitter 1 Input 2 Output
Core Technical Specifications
| Feature | Specification |
| Input Port | 1 x HDMI (Female) |
| Output Ports | 2 x HDMI (Female) |
| Resolution Support | Up to 4K x 2K @ 60Hz |
| Backward Compatibility | Supports 1080p, 1080i, 720p, 576p, 480p |
| HDMI Version | HDMI 2.0 (Typically) |
| HDCP Version | HDCP 2.2 Compliant (Supports protected content like Netflix/Disney+) |
| Audio Support | DTS-HD, Dolby-TrueHD, LPCM7.1, DTS, Dolby-AC3, DSD |
Key Features
Plug and Play: No software or drivers required. It automatically detects the display resolution and scales accordingly.
High Refresh Rate: Support for 60Hz at 4K ensures smooth motion, which is essential for gaming and high-definition sports.
Signal Buffering: The unit amplifies the signal, allowing for longer HDMI cable runs without loss of video quality or digital “noise.”
Compact Design: The ADP-HS-1071 is usually housed in a metal casing to provide better heat dissipation and durability.
Common Use Cases
Home Theater: Sending a movie from a Blu-ray player to both a TV and a Projector.
Retail/Showrooms: Displaying the same promotional video on two different monitors.
Gaming: Streaming or recording gameplay by sending one signal to a monitor and the other to a capture card.
Data Centers: Monitoring a server output on two screens in different locations.
Important Notes
Extended Mode: This device does not support “Extended Desktop” (showing different windows on each screen). It only supports “Mirror Mode.”
Power Supply: This unit typically requires a 5V DC power source (included) to maintain the 4K signal integrity across two outputs.
Cable Quality: To achieve 4K @ 60Hz, ensure you are using HDMI 2.0 certified cables
