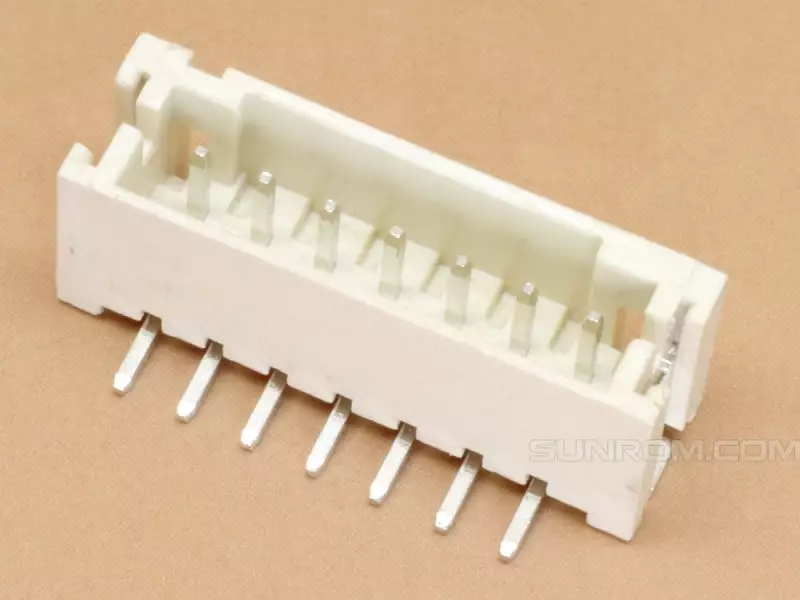

7 pin JST PH 2.0mm SMT Header Vertical Straight Top Entry

Product Description

The 7 Pin JST PH 2.0mm SMT Header Vertical Straight Top Entry is a compact and reliable surface-mount wire-to-board connector designed to provide secure electrical connections in space-constrained electronic applications. Featuring a 2.0mm pitch, 7-pin configuration, and vertical straight top-entry design, this connector is suitable for applications requiring multiple signal connections while maintaining a compact PCB layout.

Compatible with the JST PH 2.0mm series, this header is designed for Surface Mount Technology (SMT) assembly, making it suitable for automated PCB manufacturing and high-density circuit board designs. The vertical top-entry orientation allows the mating connector to connect directly from above the PCB, enabling efficient cable routing and optimized component placement.

The connector features high-quality copper alloy contacts with tin plating, ensuring excellent electrical conductivity, low contact resistance, and reliable long-term performance. Its high-temperature thermoplastic housing provides excellent insulation and withstands standard SMT reflow soldering processes, ensuring durability in demanding electronic environments.

Ideal for drones, robotics, IoT devices, sensors, embedded systems, battery management systems, and consumer electronics, the 7 Pin JST PH 2.0mm SMT Header Vertical Straight Top Entry provides a dependable and space-efficient wire-to-board connection solution.

Key Features

• JST PH 2.0mm compatible SMT header
• 7-pin wire-to-board connector
• 2.0mm pitch
• Surface Mount Technology (SMT) design
• Vertical straight top-entry orientation
• Polarized connector design for secure mating
• Tin-plated copper alloy contacts
• High-temperature thermoplastic housing
• Suitable for automated PCB assembly
• Compact and space-saving design
• Reliable electrical and mechanical performance

Applications & Use Cases

The 7 Pin JST PH 2.0mm SMT Vertical Header is commonly used in:

• Drones and UAV electronics
• Robotics and automation systems
• Battery Management Systems (BMS)
• IoT devices
• Sensor modules
• Embedded control systems
• LED lighting systems
• Consumer electronics
• Arduino-compatible hardware
• Industrial control equipment
• DIY electronics and PCB prototyping

Technical Specifications

• Connector Type: JST PH Compatible SMT Header
• Number of Pins: 7
• Pitch: 2.0mm
• Mounting Type: Surface Mount Technology (SMT)
• Orientation: Vertical Straight (Top Entry)
• Contact Material: Copper Alloy
• Contact Plating: Tin Plated
• Housing Material: High-temperature Thermoplastic
• Rated Voltage: 100V AC/DC
• Rated Current: Up to 2A
• Operating Temperature: -25°C to +85°C
• Compatible Connector: JST PH 2.0mm 7-pin Female Housing

Why Choose This Header?

The 7 Pin JST PH 2.0mm SMT Header Vertical Straight Top Entry is an excellent choice for compact PCB designs requiring a reliable and space-efficient wire connection. Its SMT construction supports automated production assembly, while the vertical top-entry configuration allows organized cable routing and efficient use of PCB space. It is ideal for drones, robotics, embedded electronics, and other compact electronic applications.

Package Includes

• 1 × 7 Pin JST PH 2.0mm SMT Header Vertical Straight Top Entry Connector
