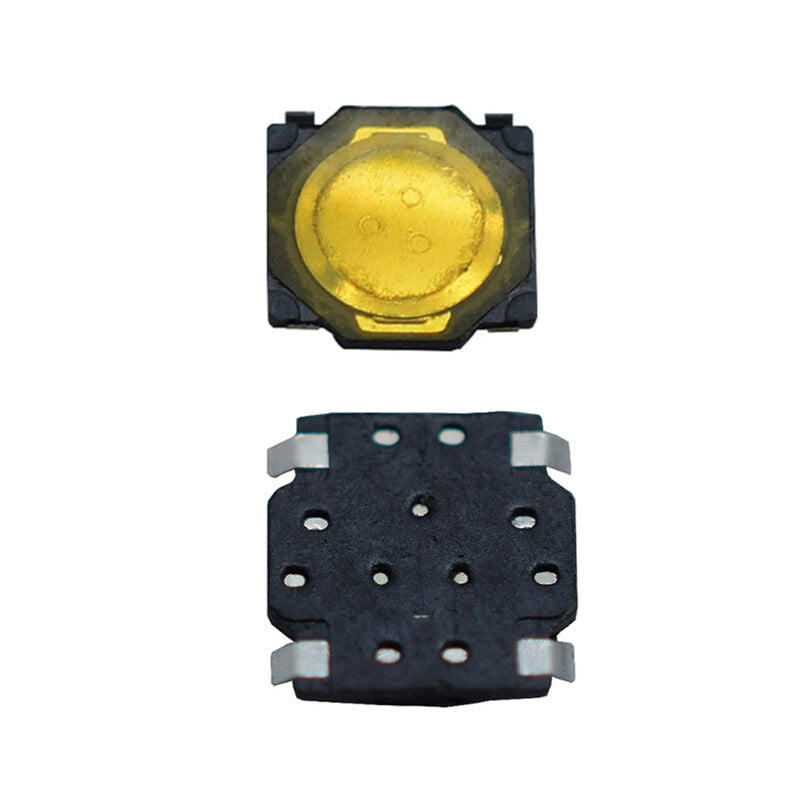

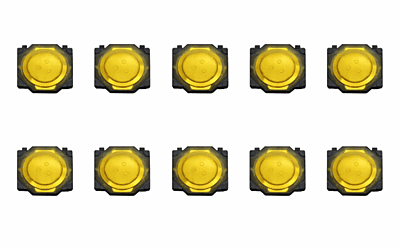

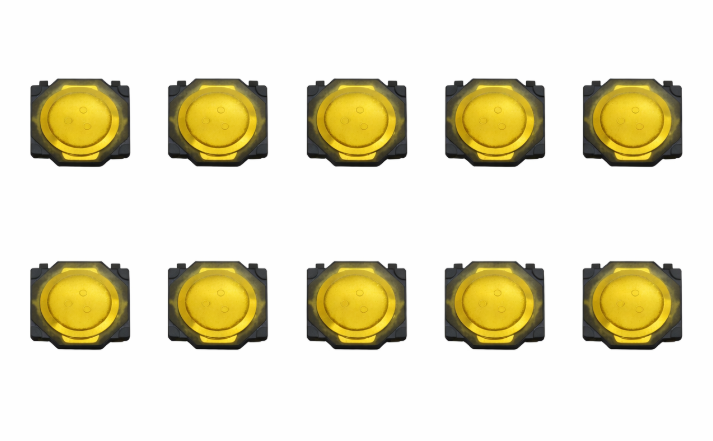

4 Pin Round Button SPST Membrane Tactile Switch SMD TS3735PA 250gf (Pack Of 10)-INACTIVE
Constituents.. 1) [PBEV0249]4 Pin Round Button SPST Membrane Tactile Switch SMD TS3735PA 250gf - 10 NOS
SKU - PBEV0249-10
Out of stock
₹45.00
₹68.00
- Buy from 1 to 4 products @ ₹45.00 per item
- Buy from 5 to 9 products @ ₹37.00 per item
- Buy above 10 @ ₹32.00 per item
Product Details
MPN: TS3735PA-250gf
property | Parameter Value |
|---|---|
Product Catalog | Tactile switch |
Circuit Structure | SPST |
Button shape | Round Button |
Force | 2.6N |
Installation | Stand sticker |
Switch length | 3.7mm |
Switch width | 3.6mm |
Switch height | 0.35mm |
property | Parameter Value |
|---|---|
With stand | Without bracket |
Contact current | 50mA |
Rated voltage | 12V |
Button/cap color | yellow |
Pin Style | SMD connector |
Working life | 100,000 times |
Operating temperature | -20℃~+70℃ |
