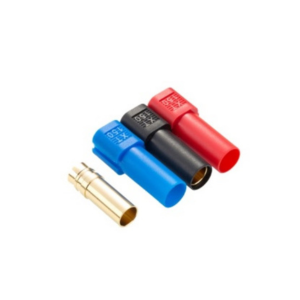

Amass XT150 Female Connector – XT150-F.G.R Original Drone Connectors

Product Description

The Amass XT150 Female Connector (XT150-F.G.R) is a high-performance single-pin high-current DC power connector engineered for demanding applications such as agriculture drones, industrial UAV systems, heavy-duty RC vehicles, robotics, electric mobility systems, and high-capacity lithium battery packs. Manufactured by Amass, a globally trusted leader in connector technology, the XT150 series is designed for extremely low resistance power transmission, high durability, and stable performance under heavy electrical loads.

The XT150-F.G.R Female Connector features a precision-machined brass contact with gold flash plating, ensuring excellent conductivity and minimal contact resistance. This allows efficient power flow with reduced heat generation, even under continuous high-current operation. The gold plating also provides strong resistance against oxidation and corrosion, making the connector reliable for long-term outdoor and industrial use.

Designed for high-power DC applications, the XT150 connector is rated for approximately 60A continuous current and 500V DC operation, depending on wire gauge and thermal conditions. Its large contact area and robust structure help maintain stable electrical performance even in demanding UAV propulsion systems and high-capacity battery setups.

The housing is made from high-temperature PA (Polyamide) thermoplastic with UL94 V-0 flame-retardant rating, ensuring excellent insulation, mechanical strength, and thermal stability. This rugged construction allows the connector to withstand vibration, shock, and continuous stress—conditions commonly found in drones, robotics, and electric mobility systems.

A key design advantage of the XT150 series is its large contact surface and heavy-duty bullet-style structure, which improves current handling capability and reduces voltage drop compared to smaller connectors. This makes it especially suitable for high-load battery discharge systems and ESC power lines, where efficiency and safety are critical.

Whether you're building a professional agricultural drone, assembling a high-capacity battery pack, or designing industrial power electronics, the Amass XT150 Female Connector provides a reliable, low-loss, and mechanically strong power connection solution.

Key Features

• Genuine Amass XT150-F.G.R Female Connector
• High-current single-pin DC power connector
• Gold flash plated brass contact for excellent conductivity
• Low contact resistance for efficient power transfer
• Supports ~60A continuous current (system dependent)
• Rated for up to 500V DC operation
• High-temperature PA (Polyamide) UL94 V-0 flame-retardant housing
• Large contact surface for improved current handling
• Strong vibration and shock resistance
• Durable design for long service life
• Easy solder-type wire termination

Applications & Use Cases

• Agriculture drones and spraying UAVs
• Heavy-lift industrial drones (VTOL systems)
• Lithium-ion and LiPo battery packs
• Battery-to-ESC power connections
• RC cars, boats, and aircraft
• Robotics and automation systems
• Industrial power distribution systems
• Electric vehicles and mobility systems
• High-current charging systems
• DIY electronics and prototyping

Technical Specifications

• Brand: Amass
• Model: XT150-F.G.R
• Connector Type: Female
• Series: XT150
• Contact Material: Brass, gold flash plated
• Housing Material: PA (Polyamide), UL94 V-0 flame-retardant
• Rated Current: ~60A continuous
• Rated Voltage: 500V DC
• Wire Compatibility: Up to 8 AWG
• Mechanical Life: ~1000 mating cycles
• Operating Temperature: -20°C to 120°C
• Mounting Type: Solder wire connection
• Protection Rating: IP40

Why Choose This Connector?

The Amass XT150 Female Connector is designed for users who need high-current reliability with minimal power loss. Its large contact structure ensures stable current flow, while the rugged housing provides excellent durability in harsh environments.

Compared to smaller XT-series connectors, the XT150 offers significantly higher current handling capability, better thermal stability, and stronger mechanical robustness, making it ideal for professional UAV and industrial power systems.

Package Includes

• 1 × Amass XT150 Female Connector (XT150-F.G.R)
