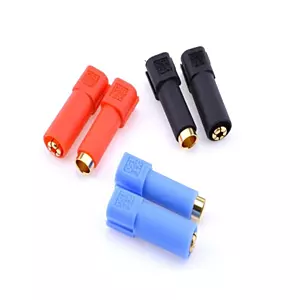

Amass XT150 Gold Plated Male Connector 1 Pc Black XT150-M.G.B

Product Description

The Amass XT150 Gold Plated Male Connector – Black (XT150-M.G.B) is a premium high-current single-pole DC power connector engineered for reliable and efficient power transmission in agriculture drones, industrial UAVs, RC vehicles, electric vehicles, robotics, battery packs, and high-power electronic systems. Manufactured by Amass, a globally trusted connector brand, the XT150 series is designed to provide low-resistance electrical performance, high current handling capability, and exceptional mechanical durability for demanding applications.

The XT150-M.G.B Male Connector features a precision-machined brass contact with premium gold plating, ensuring superior electrical conductivity and minimal contact resistance. The gold-plated contact significantly reduces voltage drop and heat generation while providing excellent resistance to oxidation and corrosion, ensuring reliable performance over extended periods of use.

Designed for high-current DC power systems, the XT150 connector is rated for 60A continuous current and up to 130A peak current, depending on wire gauge and operating conditions. It also supports 500V DC systems, making it an excellent choice for professional drone power systems, battery packs, motor controllers, and industrial electronics.

One of the key advantages of the XT150 series is its large 6mm bullet contact design, which provides a significantly larger contact surface than standard connectors. This design lowers electrical resistance, improves heat dissipation, and enables efficient high-current transfer. The detachable black housing also allows users to combine multiple XT150 connectors using the integrated dovetail locking system, making it easy to build custom battery connectors for different applications.

The housing is manufactured from high-temperature PA (Polyamide/Nylon) with a UL94 V-0 flame-retardant rating, providing outstanding insulation, mechanical strength, and thermal stability. Its rugged construction resists vibration, impact, and continuous electrical stress, making it ideal for outdoor UAV operations and industrial environments.

Whether you're assembling a heavy-lift drone, upgrading an RC vehicle, building a high-capacity lithium battery pack, or designing industrial power systems, the Amass XT150 Gold Plated Male Connector delivers professional-grade reliability, efficient power transfer, and long-lasting performance.

Key Features

• Genuine Amass XT150-M.G.B Gold Plated Male Connector
• High-current single-pole DC power connector
• Premium gold-plated brass contact for maximum conductivity
• Low contact resistance for efficient power transfer
• Rated for 60A continuous current
• Supports 130A peak current
• Rated for 500V DC
• Large 6mm bullet contact for improved current handling
• High-temperature PA (Nylon) UL94 V-0 flame-retardant housing
• Detachable housing with dovetail locking design
• Excellent resistance to heat, vibration, and corrosion
• Easy solder-type wire termination

Applications & Use Cases

The Amass XT150 Gold Plated Male Connector is widely used in:

• Agriculture drones and spraying UAVs
• Heavy-lift commercial drones
• FPV drone battery systems
• Lithium-ion and LiPo battery packs
• Electronic Speed Controllers (ESCs)
• Brushless motor power connections
• RC cars, boats, helicopters, and aircraft
• Electric vehicles (EVs) and e-bikes
• Robotics and industrial automation
• High-current battery charging systems
• Solar energy storage systems
• DIY electronics and custom battery projects

Technical Specifications

• Brand: Amass
• Model: XT150-M.G.B
• Connector Type: Male
• Series: XT150
• Number of Poles: 1
• Contact Material: Gold-plated brass
• Housing Material: PA (Polyamide/Nylon), UL94 V-0
• Rated Current: 60A Continuous
• Peak Current: 130A
• Rated Voltage: 500V DC
• Contact Resistance: ≤0.20mΩ
• Recommended Wire Size: 8 AWG
• Mechanical Life: 1000 mating cycles
• Operating Temperature: -20°C to 120°C
• Mounting Type: Cable mount, solder termination
• Protection Rating: IP40

Why Choose This Connector?

The Amass XT150 Gold Plated Male Connector is an excellent choice for engineers, drone manufacturers, robotics professionals, and RC enthusiasts who require safe, efficient, and reliable high-current power connections. Its large gold-plated contact surface minimizes power loss while maximizing current capacity, making it ideal for demanding electrical systems.

Compared to conventional bullet connectors, the XT150 series offers higher current capability, lower resistance, superior thermal performance, and a rugged flame-retardant housing, ensuring dependable operation in professional and industrial applications.

Package Includes

• 1 × Amass XT150 Gold Plated Male Connector – Black (XT150-M.G.B)
