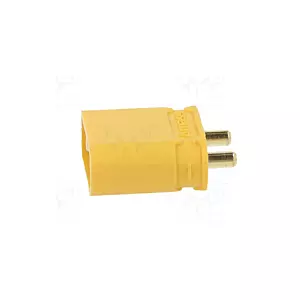

Amass XT30AW-M XT30AW Male Connector (Gold-Plated, Yellow)

Product Description

The Amass XT30AW-M (XT30AW Male Connector – Gold-Plated, Yellow) is a compact PCB-mounted high-current DC power connector designed for reliable and efficient power transmission in FPV drones, RC aircraft, robotics, battery packs, ESC systems, and embedded electronics. Manufactured by Amass, a globally trusted connector brand, the XT30AW series is known for its space-saving PCB design, strong mechanical stability, and dependable electrical performance, making it ideal for compact power electronics.

The XT30AW-M Male Connector features gold-flash plated brass contacts, which provide excellent electrical conductivity, low contact resistance, and strong resistance to oxidation and corrosion. This ensures stable current flow and long service life even under repeated use and high-load conditions.

Designed for through-hole PCB mounting (THT), the connector is soldered directly onto circuit boards, allowing clean integration in power distribution systems and compact drone electronics. Its straight vertical structure provides strong mechanical anchoring, reducing stress on solder joints and improving durability in vibration-heavy environments like UAVs and RC vehicles.

The XT30AW series is rated for 20A current handling and 600V DC, making it suitable for low-to-medium power applications where efficiency and compact size are more important than bulk high-current capacity.

The housing is made from high-temperature yellow PA (Nylon/Polyamide) with UL94 V-0 flame-retardant rating, ensuring strong insulation, thermal stability, and mechanical durability. The compact form factor makes it especially useful in dense PCB layouts used in drones and robotics systems.

Whether you're designing a drone power distribution board, building a compact battery-powered system, or integrating power connectors into a PCB, the Amass XT30AW-M Male Connector offers a reliable, space-efficient, and durable solution.

Key Features

• Genuine Amass XT30AW-M Male Connector
• PCB-mounted (Through-Hole / THT) design
• Gold-flash plated brass contacts
• Low contact resistance for efficient power transfer
• Rated for 20A current
• Rated for 600V DC
• Compact 2-pin power connector
• High-temperature PA66 nylon housing
• UL94 V-0 flame-retardant material
• Strong mechanical stability for PCB mounting
• Ideal for compact drone and robotics electronics

Applications & Use Cases

• FPV drones and racing drones
• RC aircraft and ground vehicles
• Power Distribution Boards (PDBs)
• Battery Management Systems (BMS)
• Lithium battery packs
• ESC and motor control systems
• Robotics and embedded electronics
• Compact PCB power input/output systems
• DIY electronics and prototyping projects

Technical Specifications

• Brand: Amass
• Model: XT30AW-M
• Connector Type: Male
• Series: XT30AW
• Mounting Type: PCB Through-Hole (THT)
• Contact Material: Brass
• Contact Plating: Gold flash
• Housing Material: PA66 (Nylon), UL94 V-0
• Rated Current: 20A
• Rated Voltage: 600V DC
• Number of Pins: 2
• Orientation: Straight PCB mount
• Mechanical Durability: ~1000 mating cycles
• Operating Temperature: -20°C to 120°C

Why Choose This Connector?

The XT30AW-M is ideal when you need a direct PCB-mounted XT30-style connector that saves space, improves wiring neatness, and ensures reliable power delivery in compact electronic systems. Its gold-plated contacts and flame-retardant housing make it a dependable choice for drones and robotics where vibration resistance and efficiency matter.

Package Includes

• 1 × Amass XT30AW-M – XT30AW Male Connector (Gold-Plated, Yellow)
