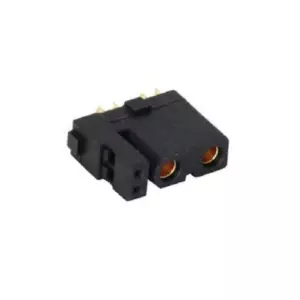

Amass XT30PB(2+2) Male Connector – XT30(2+2)PB-M.G.B

Product Description

The Amass XT30PB(2+2) Male Connector (XT30(2+2)PB-M.G.B) is a high-performance PCB-mount hybrid power connector designed for compact, reliable, and efficient electrical connections in drones, RC systems, robotics, and advanced embedded electronic applications. Manufactured by Amass, a globally trusted brand in professional connector solutions, this XT30PB series connector is engineered to deliver stable power transmission, low resistance, and integrated signal capability in modern electronic systems.

This XT30(2+2) male connector features a unique 2 power + 2 signal pin configuration, combining high-current power delivery with auxiliary signal transmission in a single compact housing. This makes it ideal for applications where both power and communication (such as telemetry, sensing, or control signals) are required through one connector, reducing wiring complexity and improving system efficiency.

The connector uses precision-machined gold-plated brass contacts, ensuring excellent conductivity, minimal voltage drop, and strong resistance to oxidation and corrosion. This guarantees long-term stable performance even in demanding environments involving vibration, heat, and continuous electrical load.

The PCB through-hole (THT) mounting design allows direct integration onto printed circuit boards, eliminating the need for additional wiring in many applications. This results in cleaner PCB layouts, improved structural stability, and better space optimization, especially in compact drone power distribution systems and embedded control boards.

Engineered for high-current low-voltage applications, the XT30PB(2+2)-M.G.B ensures efficient energy transfer with low heat generation and stable current handling. Its secure friction-fit design provides strong mechanical retention, reducing the risk of accidental disconnection during operation in vibration-heavy environments such as UAVs, RC vehicles, and robotics systems.

The housing is made from high-temperature flame-retardant thermoplastic (UL94-V0 rated), offering excellent insulation, safety, and mechanical durability. This ensures reliable performance even in harsh operating conditions.

Key Features

• Genuine Amass XT30(2+2)PB Male Connector (XT30PB-M.G.B)
• Hybrid design: 2 power pins + 2 signal pins
• PCB-mount (through-hole) connector structure
• Gold-plated brass contacts for superior conductivity
• Low resistance design for efficient power transfer
• High-temperature UL94-V0 flame-retardant housing
• Secure friction-fit connection for vibration resistance
• Integrated power + signal transmission in one connector
• Compact design for modern embedded systems
• Long service life with high mating cycle durability
• Easy solder-based PCB installation

Applications & Use Cases

The Amass XT30PB(2+2) Male Connector is widely used in advanced electronic systems, including:

• FPV drones and UAV power + telemetry systems
• RC cars, boats, trucks, and aircraft
• Smart lithium battery packs with signal monitoring
• Electronic Speed Controllers (ESCs) with telemetry
• Brushless motor systems with sensors
• Robotics and automation platforms
• Embedded control and communication boards
• DIY electronics and prototyping projects
• 3D printers and CNC machines with feedback systems
• IoT devices requiring power + data integration
• Industrial embedded electronics and smart modules

Technical Specifications

• Brand: Amass
• Model: XT30(2+2)PB-M.G.B
• Connector Type: Male
• Series: XT30PB (2+2)
• Configuration: 2 Power + 2 Signal Pins
• Mounting Type: Through Hole (PCB Mount)
• Contact Material: Gold-plated brass
• Housing Material: High-temperature thermoplastic (UL94-V0)
• Current Rating: Up to 15–20A class (power pins, typical XT30 range)
• Voltage Rating: Up to 500V DC
• Contact Resistance: ≤1.2 mΩ (typical specification)
• Mechanical Life: ~1000 mating cycles
• Operating Temperature: -20°C to 120°C
• Application Type: PCB-mounted hybrid power + signal connector

Why Choose This Connector?

The Amass XT30PB(2+2) Male Connector is ideal for engineers and designers who need a compact, integrated power and signal solution. Its hybrid design reduces wiring complexity, improves system reliability, and enables cleaner PCB layouts.

Compared to standard XT30 connectors, the 2+2 variant adds signal capability without significantly increasing size, making it a preferred choice for modern UAVs, smart batteries, and embedded electronic systems.

Package Includes

• 1 × Amass XT30PB(2+2) Male Connector (XT30(2+2)PB-M.G.B)
