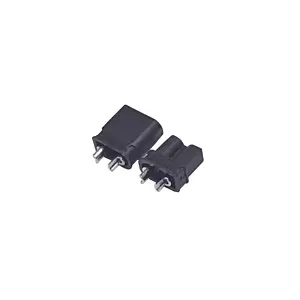

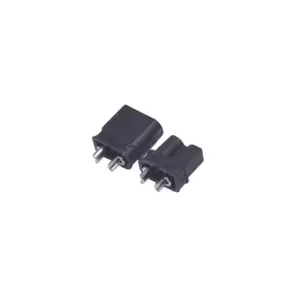

Amass XT30U-M.N.B – XT30U Male Connector (Nickel-Plated, Black)

Product Description

The Amass XT30U-M.N.B (XT30U Male Connector – Nickel-Plated, Black) is a premium compact high-current DC power connector designed for reliable power transmission in FPV drones, RC aircraft, robotics, battery packs, electronic speed controllers (ESCs), portable electronics, and DIY electronic projects. Manufactured by Amass, a globally trusted connector manufacturer, the XT30U series is known for its compact size, secure polarized design, and dependable electrical performance, making it ideal for space-constrained power applications.

The XT30U-M.N.B Male Connector features nickel-plated brass contacts that provide excellent electrical conductivity, low contact resistance, and enhanced resistance to corrosion and wear. The nickel plating ensures long-term durability while maintaining stable electrical performance under continuous operation.

Designed for cable-mounted applications, the connector utilizes a solder-type wire termination, allowing secure attachment to 14–18 AWG wires. Its polarized housing prevents reverse polarity connections, ensuring safe installation while providing a firm, vibration-resistant connection with compatible XT30 female connectors.

The connector supports 15A continuous current and 30A peak current, with a rated voltage of 500V DC, making it suitable for compact power systems used in drones, RC models, battery packs, and embedded electronics.

The housing is manufactured from high-temperature black PA (Nylon/Polyamide) with a UL94 V-0 flame-retardant rating, offering excellent thermal stability, electrical insulation, and mechanical durability. Its sleek black finish provides a clean, professional appearance while withstanding vibration, impact, and demanding operating environments.

Whether you're assembling an FPV drone, building a lithium battery pack, upgrading an RC vehicle, or designing a compact robotics project, the Amass XT30U-M.N.B Male Connector delivers reliable power transmission, durable construction, and long-lasting performance.

Key Features

• Genuine Amass XT30U-M.N.B Male Connector
• Compact high-current DC power connector
• Nickel-plated brass contacts
• Low contact resistance for efficient power transfer
• Rated for 15A continuous current
• Supports 30A peak current
• Rated for 500V DC
• High-temperature black PA (Nylon) UL94 V-0 flame-retardant housing
• Polarized design prevents reverse polarity
• Supports 14–18 AWG wire
• Solder-type wire termination
• Excellent resistance to heat, vibration, and corrosion

Applications & Use Cases

The Amass XT30U-M.N.B Male Connector is widely used in:

• FPV drones and racing drones
• RC aircraft and helicopters
• RC cars and boats
• Electronic Speed Controllers (ESCs)
• Lithium-ion and LiPo battery packs
• Robotics and automation projects
• Portable electronic devices
• Battery charging systems
• Power distribution modules
• DIY electronics and embedded systems

Technical Specifications

• Brand: Amass
• Model: XT30U-M.N.B
• Connector Type: Male
• Series: XT30U
• Number of Pins: 2
• Contact Material: Nickel-plated brass
• Housing Material: High-temperature PA (Nylon/Polyamide), UL94 V-0 flame-retardant
• Rated Current: 15A Continuous
• Peak Current: 30A
• Rated Voltage: 500V DC
• Recommended Wire Size: 14–18 AWG
• Mechanical Life: ≥1,000 mating cycles
• Operating Temperature: -20°C to 120°C
• Mounting Type: Cable mount
• Electrical Connection: Solder termination
• Protection Rating: IP40

Why Choose This Connector?

The Amass XT30U-M.N.B Male Connector is an excellent choice for engineers, drone builders, and RC enthusiasts who require a compact, lightweight, and durable high-current connector. Its nickel-plated contacts provide excellent corrosion resistance and long service life, while the black flame-retardant housing offers a professional appearance and dependable mechanical strength.

Compared to standard XT30 connectors, the XT30U-M.N.B combines reliable electrical performance with a sleek black finish, making it ideal for compact drone, robotics, battery, and portable power applications where durability and aesthetics are equally important.

Package Includes

• 1 × Amass XT30U-M.N.B – XT30U Male Connector (Nickel-Plated, Black)
