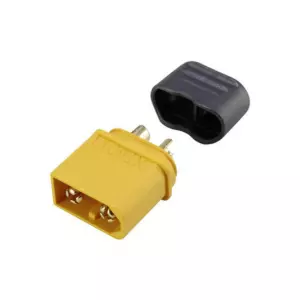

Amass XT60H Male Connector with Housing - XT60H-M.G.Y Drone Connectors

Product Description

The Amass XT60H Male Connector with Housing (XT60H-M.G.Y) is a next-generation high-current 2-pin DC power connector designed for safe, reliable, and efficient power delivery in drones, RC vehicles, robotics, battery packs, electric vehicles, and industrial electronic systems. Manufactured by Amass, a globally trusted leader in connector technology, the XT60H series is an upgraded version of the classic XT60, offering improved ergonomics, better safety, and enhanced mechanical durability.

The XT60H-M.G.Y Male Connector features precision gold-plated brass contacts, ensuring excellent electrical conductivity and very low contact resistance. This helps reduce power loss and heat generation during high-current operation, making it suitable for demanding applications such as UAV propulsion systems and lithium battery power distribution. The gold plating also provides strong resistance to oxidation and corrosion, ensuring consistent long-term performance.

A key improvement in the XT60H design is its integrated protective housing (“H” series design), which not only strengthens the connector body but also protects solder joints and improves handling. The ergonomic grip makes plugging and unplugging easier and more secure, especially in field applications like drone maintenance and RC setups.

The housing is made from high-temperature PA (Polyamide) thermoplastic with UL94 V-0 flame-retardant rating, ensuring excellent insulation, mechanical strength, and thermal stability. This rugged construction allows the connector to withstand vibration, shock, and continuous electrical stress in harsh operating environments.

Designed for high-current battery systems, the XT60H connector typically supports up to 60A peak current (with lower continuous ratings depending on wire and cooling conditions) and operates safely in up to 500V DC systems. It is widely used in drone power systems, ESC connections, and lithium battery packs where stable and compact power delivery is essential.

Whether you're building an FPV drone, assembling a robotics platform, or working on battery-powered electronics, the Amass XT60H Male Connector with Housing delivers a reliable balance of performance, safety, and compact design.

Key Features

• Genuine Amass XT60H-M.G.Y Male Connector
• Upgraded XT60 series with protective housing design
• Gold-plated brass contacts for excellent conductivity
• Low contact resistance for efficient power transfer
• Integrated grip housing for easy handling
• High-temperature PA (Polyamide) UL94 V-0 flame-retardant shell
• Secure friction-fit connection system
• Improved protection for solder joints
• Compact and lightweight design
• Excellent vibration and heat resistance
• Long service life with stable performance

Applications & Use Cases

• FPV racing drones and UAV systems
• Agricultural and industrial drones
• Lithium battery packs (LiPo/Li-ion)
• Electronic Speed Controllers (ESCs)
• Power Distribution Boards (PDBs)
• RC cars, boats, and aircraft
• Robotics and automation systems
• DIY electronics and prototyping
• Battery charging systems
• Embedded power electronics
• Industrial control systems

Technical Specifications

• Brand: Amass
• Model: XT60H-M.G.Y
• Connector Type: Male
• Series: XT60H
• Number of Pins: 2
• Contact Material: Gold-plated brass
• Housing Material: PA (Polyamide), UL94 V-0 flame-retardant
• Rated Voltage: 500V DC
• Current Rating: ~30A continuous / up to ~60A peak (application dependent)
• Wire Compatibility: 12–14 AWG
• Operating Temperature: -20°C to 120°C
• Mechanical Life: ~100 mating cycles (typical)
• Mounting Type: Solder wire connection

Why Choose This Connector?

The Amass XT60H Male Connector is ideal for users who need a safer and more user-friendly upgrade over the standard XT60 connector. Its integrated housing improves handling, protects solder joints, and reduces wear during repeated use.

Compared to older XT60 designs, the XT60H series offers better ergonomics, improved mechanical protection, and more reliable real-world performance, making it a preferred choice for modern drone and battery-powered systems.

Package Includes

• 1 × Amass XT60H Male Connector with Housing (XT60H-M.G.Y)
