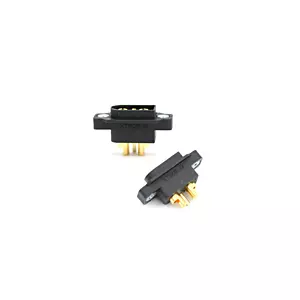

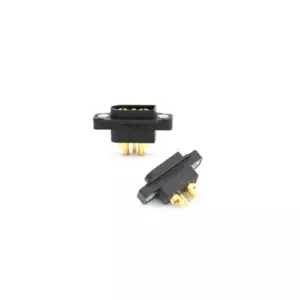

Amass XT60IE-M Battery Connector – XT60IE-M.G.B Original Drone Connectors

Product Description

The Amass XT60IE-M Battery Connector (XT60IE-M.G.B) is a high-quality 2-pin DC power connector with integrated panel-mount and safety-oriented design, built for reliable power transmission in drones, RC systems, robotics, battery packs, electric vehicles, and industrial electronic applications. Manufactured by Amass, a globally trusted leader in connector technology, the XT60IE series is engineered to deliver stable current flow, low resistance, and secure mechanical installation for professional electronic systems.

The XT60IE-M.G.B Male Connector features precision gold-flash plated brass contacts, ensuring excellent conductivity and reduced contact resistance. This helps minimize power loss and heat generation during operation, making it suitable for medium-to-high power UAV systems and lithium battery applications. The gold plating also enhances corrosion resistance, ensuring long-term reliability even in harsh outdoor environments.

The XT60IE series is a panel-mount variant of the XT60 family, designed with a 3-pin (2+1 structure in some variants) and flange mounting system, allowing secure installation onto enclosures, battery housings, or power distribution units. This makes it especially useful for systems where a fixed, stable power input/output port is required rather than loose inline connectors.

The housing is made from high-temperature PA (Polyamide) thermoplastic with UL94 V-0 flame-retardant rating, ensuring excellent insulation, mechanical strength, and thermal stability. It is designed to withstand vibration, shock, and continuous electrical stress, which is critical for drones and robotics applications.

The XT60IE series is typically rated for around 30A continuous current and up to 500V DC operation, depending on configuration and wiring conditions, making it suitable for UAV power systems and medium-load battery interfaces.

Whether you're designing a drone power input port, building a robotics charging interface, or assembling an embedded power system, the Amass XT60IE-M Battery Connector provides a reliable, safe, and professional-grade solution for fixed power connectivity.

Key Features

• Genuine Amass XT60IE-M.G.B Battery Connector
• Panel-mount XT60 series connector with flange design
• 2-pin / 3-pin (2+1 structure depending on variant) design
• Gold-flash plated brass contacts for high conductivity
• Low contact resistance for efficient power transfer
• High-temperature PA (Polyamide) UL94 V-0 flame-retardant housing
• Secure screw/flange mounting for stable installation
• Resistant to vibration and mechanical stress
• Compact and lightweight panel interface design
• Easy solder-type wire termination
• Long service life with consistent performance

Applications & Use Cases

• Drone battery input/output ports
• UAV charging and power distribution systems
• RC cars, boats, and aircraft
• Robotics and automation systems
• Battery management systems (BMS)
• Power distribution panels and chargers
• Embedded electronics and control systems
• DIY electronics and prototyping projects
• Industrial power interfaces
• Lithium battery pack connectors

Technical Specifications

• Brand: Amass
• Model: XT60IE-M.G.B
• Connector Type: Male
• Series: XT60IE (Panel Mount)
• Contact Material: Brass, gold-flash plated
• Housing Material: PA (Polyamide), UL94 V-0 flame-retardant
• Rated Current: 30A continuous (application dependent)
• Rated Voltage: 0.6kV / 500V DC
• Wire Compatibility: Up to 12 AWG
• Mechanical Life: ~1000 mating cycles
• Operating Temperature: -20°C to 120°C
• Mounting Type: Panel mount (flange with screw holes)
• Electrical Connection: Solder termination

Why Choose This Connector?

The Amass XT60IE-M Battery Connector is ideal for users who need a fixed, panel-mounted XT60-style power interface with strong mechanical stability and professional integration. Unlike inline connectors, it is designed for permanent installation in systems where safety, durability, and clean wiring are important.

It offers the reliability of the XT60 family combined with the structural advantages of a panel-mount design, making it a preferred choice for drone charging ports and embedded power systems.

Package Includes

• 1 × Amass XT60IE-M.G.B Battery Connector
