Amass XT60L Female Connector - XT60L-F.G.Y Original Drone Connectors

Product Description

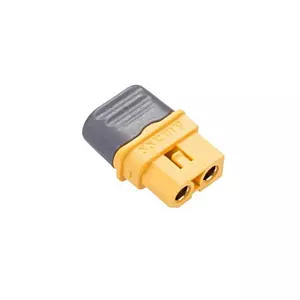

The Amass XT60L Female Connector (XT60L-F.G.Y) is a high-quality 2-pin DC power connector designed for efficient, secure, and reliable power transmission in drones, RC vehicles, robotics, battery packs, electric vehicles, and industrial electronic systems. Manufactured by Amass, a globally trusted connector brand, the XT60L series is an upgraded and compact variant of the standard XT60, offering improved mechanical design and consistent electrical performance for modern UAV and electronics applications.

The XT60L-F.G.Y Female Connector features precision gold-flash plated brass contacts, ensuring excellent conductivity and low contact resistance. This helps reduce power loss and heat generation during high-current operation, making it suitable for UAV propulsion systems, lithium battery packs, and ESC power connections. The gold flash plating also provides strong resistance to oxidation and corrosion, ensuring long-term reliability even under frequent use and harsh environmental conditions.

Designed as part of the XT60L compact series, this connector offers a space-optimized body structure while maintaining full compatibility with XT60 systems. Its streamlined design makes it ideal for installations where space is limited, such as compact drone frames, tight battery compartments, and embedded electronic assemblies.

The housing is made from high-temperature PA (Polyamide) thermoplastic with UL94 V-0 flame-retardant rating, providing excellent insulation, mechanical strength, and thermal stability. This ensures safe operation under vibration, shock, and continuous electrical load conditions commonly found in UAV and robotics applications.

The XT60L connector is commonly rated for around 30A continuous current and up to 500V DC systems, depending on wire gauge and thermal conditions, making it suitable for medium-power drone and battery applications. Its reliable friction-fit design ensures a secure connection while still allowing easy disconnection when needed.

Whether you're building an FPV drone, assembling a robotics system, or working on battery-powered electronics, the Amass XT60L Female Connector provides a dependable balance of compact size, durability, and efficient power handling.

Key Features

• Genuine Amass XT60L-F.G.Y Female Connector
• Compact XT60 series variant with optimized body design
• Gold-flash plated brass contacts for high conductivity
• Low contact resistance for efficient power transfer
• High-temperature PA (Polyamide) UL94 V-0 flame-retardant housing
• Secure friction-fit connection system
• Space-saving design for compact electronics
• Resistant to vibration, heat, and mechanical stress
• Compatible with XT60 ecosystem connectors
• Easy solder-type wire termination
• Long service life with stable electrical performance

Applications & Use Cases

• FPV racing drones and UAV systems
• Agricultural and industrial drones
• Lithium battery packs (LiPo/Li-ion)
• Electronic Speed Controllers (ESCs)
• Power distribution systems (PDBs)
• RC cars, boats, and aircraft
• Robotics and automation systems
• DIY electronics and prototyping
• Battery charging systems
• Embedded power electronics
• Industrial control systems

Technical Specifications

• Brand: Amass
• Model: XT60L-F.G.Y
• Connector Type: Female
• Series: XT60L
• Number of Pins: 2
• Contact Material: Brass, gold-flash plated
• Housing Material: PA (Polyamide), UL94 V-0 flame-retardant
• Rated Current: ~30A continuous (application dependent)
• Rated Voltage: 500V DC
• Wire Compatibility: 12–14 AWG
• Operating Temperature: -20°C to 120°C
• Mechanical Life: ~100–1000 mating cycles (typical)
• Mounting Type: Solder wire connection
• Protection Rating: IP40

Why Choose This Connector?

The Amass XT60L Female Connector is ideal for users who want a compact, reliable, and efficient alternative to standard XT60 connectors. It provides stable current handling while improving space efficiency and mechanical integration in modern drone and electronics designs.

Compared to generic connectors, the XT60L series offers better build quality, consistent conductivity, and improved durability, making it a strong choice for professional UAV and embedded power systems.

Package Includes

• 1 × Amass XT60L Female Connector (XT60L-F.G.Y)
