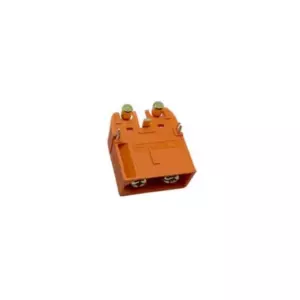

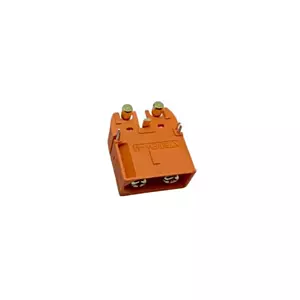

Amass XT60PW(2+1) Male Connector - XT60IPW-M.G.O Original Drone Connectors

Product Description

The Amass XT60PW(2+1) Male Connector (XT60IPW-M.G.O) is a high-performance panel-mount PCB power connector with an integrated 2+1 pin configuration, designed for reliable power and signal transmission in drones, RC systems, robotics, UAV control boards, battery packs, and industrial electronics. Manufactured by Amass, a globally trusted connector brand, this XT60PW variant is engineered for applications where both high-current power delivery and additional signal/communication lines are required in a compact footprint.

The XT60IPW-M.G.O Male Connector features a 2 power + 1 signal pin architecture (2+1 design), allowing simultaneous transmission of power and control signals through a single connector. This reduces wiring complexity, improves system integration, and enhances reliability in advanced drone and robotics systems.

It uses precision gold-flash plated brass contacts, ensuring excellent electrical conductivity and low contact resistance. This helps minimize power loss and heat buildup during operation, making it suitable for UAV propulsion systems, ESC control circuits, and smart battery systems. The gold plating also improves corrosion resistance for long-term durability in outdoor and industrial environments.

The connector is built in a 90° PCB-mounted (right-angle) configuration, designed for direct soldering onto printed circuit boards. This allows clean PCB layout design and compact integration inside drone flight controllers, power distribution boards, and smart battery management systems.

The housing is made from high-temperature PA (Polyamide) thermoplastic with UL94 V-0 flame-retardant rating, ensuring excellent insulation, mechanical strength, and thermal stability under high-load conditions. It is designed to withstand vibration, shock, and continuous electrical stress common in UAV and robotics applications.

The XT60PW(2+1) connector typically supports around 30A continuous current and up to 500V DC, depending on wiring and thermal conditions, making it suitable for medium-power drone systems and integrated electronic platforms.

Whether you're designing a smart UAV power system, building an advanced robotics controller, or developing compact embedded electronics, the Amass XT60PW(2+1) Male Connector provides a smart combination of power delivery, signal integration, and PCB-level mounting convenience.

Key Features

• Genuine Amass XT60IPW-M.G.O (XT60PW 2+1) Male Connector
• 2 power pins + 1 signal pin integrated design
• Supports combined power and communication lines
• Gold-flash plated brass contacts for high conductivity
• Low contact resistance for efficient power transfer
• PCB-mounted 90° right-angle design
• High-temperature PA (Polyamide) UL94 V-0 housing
• Strong vibration and mechanical stability
• Compact and space-saving PCB integration
• Designed for solder-type PCB installation
• Long service life with stable performance

Applications & Use Cases

• Advanced UAV and drone flight systems
• Smart battery packs with communication lines
• Power Distribution Boards (PDBs)
• ESC control and telemetry systems
• Robotics and automation systems
• Industrial embedded electronics
• RC vehicles and aircraft systems
• IoT and smart power modules
• DIY electronics and prototyping
• Battery-powered control systems

Technical Specifications

• Brand: Amass
• Model: XT60IPW-M.G.O
• Connector Type: Male
• Series: XT60PW (2+1)
• Pin Configuration: 2 power + 1 signal
• Mounting Type: PCB Through Hole (90° right-angle)
• Contact Material: Brass, gold-flash plated
• Housing Material: PA (Polyamide), UL94 V-0 flame-retardant
• Rated Current: 30A continuous
• Rated Voltage: 500V DC
• Mechanical Life: ~1000 mating cycles
• Operating Temperature: -20°C to 120°C
• Application Type: Power + signal PCB connector

Why Choose This Connector?

The Amass XT60PW(2+1) Male Connector is ideal for systems that require both power and signal transmission in a single compact connector. Unlike standard XT60 connectors, it reduces wiring complexity and improves system integration, especially in smart UAV and robotics platforms.

Its combination of PCB mounting, dual-function design, and Amass-grade reliability makes it a preferred choice for advanced electronic systems.

Package Includes

• 1 × Amass XT60IPW-M.G.O (XT60PW 2+1) Male Connector
