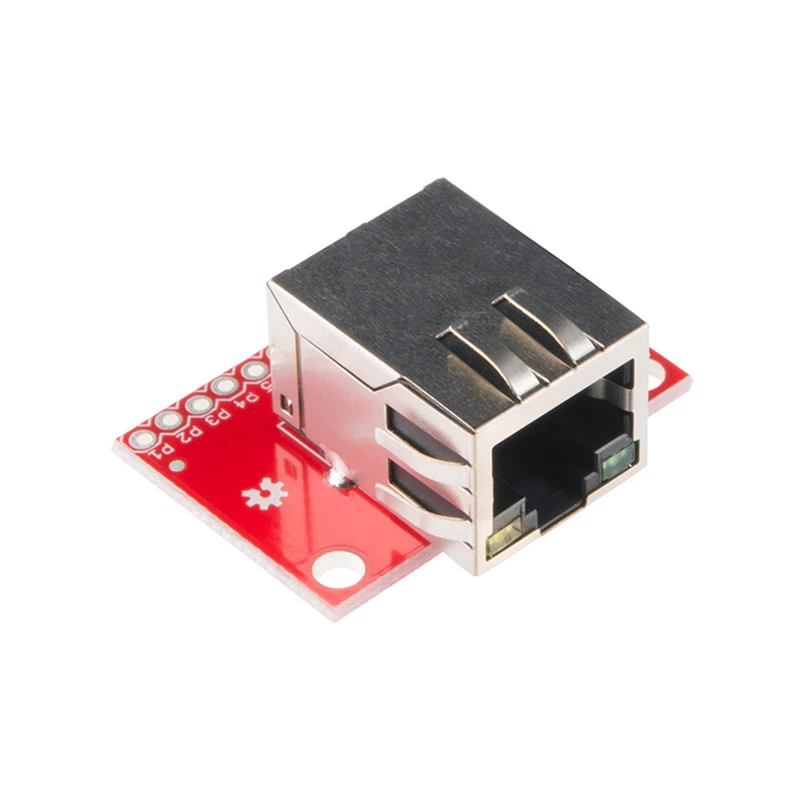

BOB-13021 - SparkFun RJ45 Connector MagJack Ethernet Breakout

Simplify Prototyping with the RJ45 Connector MagJack SparkFun

Integrating ethernet into a breadboard is often difficult because standard jacks do not fit the grid. The RJ45 Connector MagJack SparkFun solves this issue by breaking out every essential pin. Since it uses a standard 0.1 inch pitch, you can plug it directly into your project. This board saves you time so you can focus on your code instead of complex wiring.

Advantages of the BOB 10321 RJ45 Connector

The BOB 10321 RJ45 Connector includes built-in magnetics to filter out signal noise. This feature is vital because it ensures a stable data link for your microcontroller. While other breakouts require external transformers, this all-in-one solution keeps your project compact. Also, the integrated status LEDs provide immediate visual feedback on your network activity.

Industrial Grade Reliability

This RJ45 Connector MagJack SparkFun features a fully shielded housing to block electromagnetic interference. The PCB is made from high-quality materials that withstand frequent plugging and unplugging. Specifically, the breakout pins are clearly labeled for easy identification. Consequently, the RJ45 Connector MagJack SparkFun remains a favorite for both students and professional engineers.

• Integrated Magnetics – Filters noise and provides isolation for better signal integrity.

• Status LEDs – Includes Green and Yellow indicators for power and data monitoring.

• Shielded Housing – Protects your network connection from external electrical interference.

• Breadboard Friendly – Breaks out all 8 pins plus LEDs to a standard header.

Technical Specifications

Compatibility Table

Get Started with the BOB 10321 RJ45 Connector

The 10321 RJ45 Connector is the easiest way to add internet to your DIY electronics. Always double-check your pinout before powering your circuit. Using a genuine RJ45 Connector MagJack SparkFun ensures your project stays connected under any conditions.
