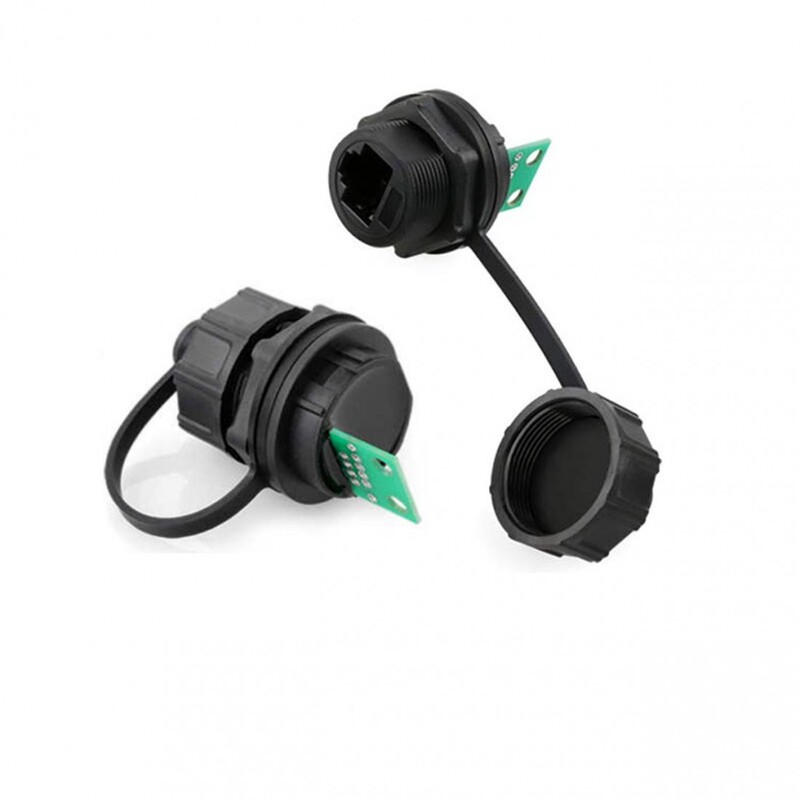

YT RJ45 Cat6A Female Socket Waterproof Ethernet Connector IP67 Panel Mount PCB Shield
₹299.00 ₹309.00
- Buy above 2 @ ₹252.00 per item
Tags:
The YT RJ45 Cat6A Female Socket Waterproof Ethernet Connector IP67 Panel Mount with PCB Shield offers high-speed Ethernet performance and robust protection against water and dust. Designed for industrial applications, this connector provides a secure and reliable connection in challenging environments.
Choose Quantity
Product Details
MPN: YT-RJ45-JSX-29-001
Connecting Mode: 1/4 bayonet connecting type
Protection Level: IP67
Cable Specification: 0.15mm2 ~ 0.2mm2 /26~24AWG
Diameter Range: 5.5mm ~7mm
Current Rating(A): 1.2A
Operating Voltage(AC.V.rms): 42V
Withstand Voltage(AC.V)1min: 1000V
Contact Resistance: < 1mOhm
Insulation Resistance: ＞500MOhm
Durability: > 500 mating & unmating cycles
Temperature Rating: -40~80C
Modular Interface: RJ45
Gender: Female
Standard: Cat6A
