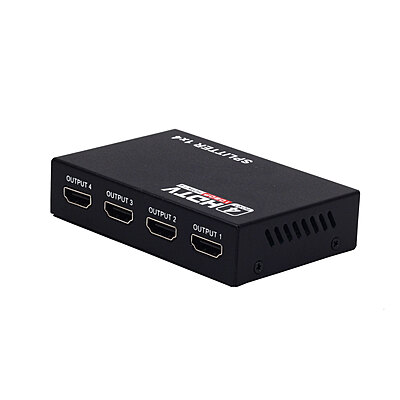

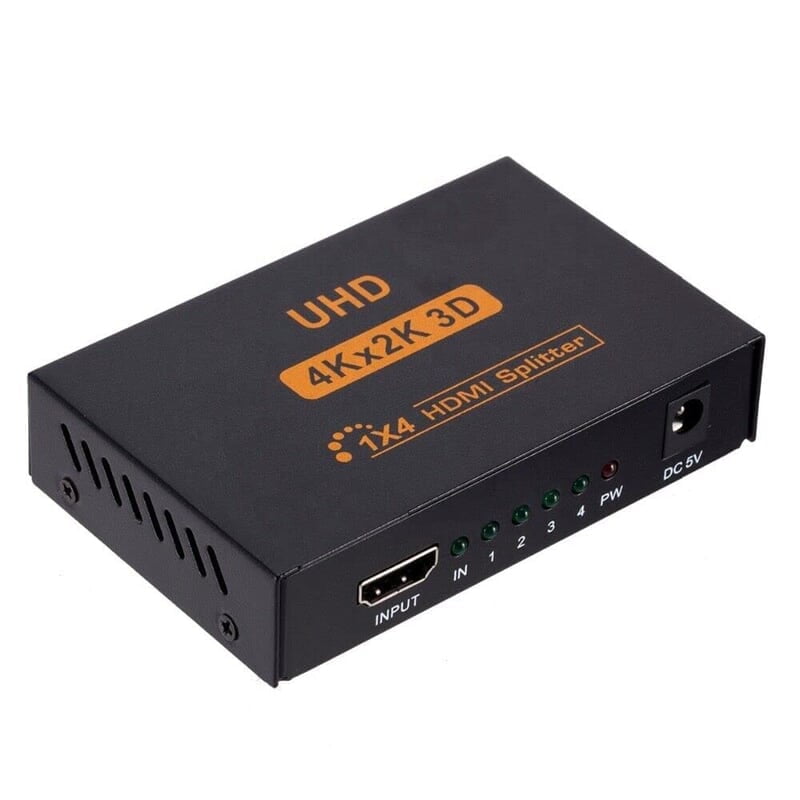

HDMI Splitter (1X4) Out Supports 3D 4K x 2K 30HZ Full HD 1080P
- Seamless Signal Duplication upto 4 HDMI port
- 4K x 2K (3840 x 2160) @ 30Hz
- Built-in Signal Amplification
- Wide Device Compatible HDMI-enabled devices
- Supports Advanced audio formats like Dolby TrueHD, DTS.
- Plug & Play Simplicity
Key Technical Specifications
| Feature | Details |
| Input Port | 1 x HDMI (Type A Female) |
| Output Ports | 4 x HDMI (Type A Female) |
| HDMI Version | HDMI 1.4 / 1.4b (Standard) |
| Max Resolution | 4K x 2K (3840 x 2160) @ 30Hz |
| Full HD Support | 1080p, 1080i, 720p, 576p, 480p |
| 3D Support | Yes, supports Full 3D video formats |
| Audio Formats | DTS-HD, Dolby-TrueHD, LPCM 7.1, DTS, Dolby-AC3, DSD |
| Bandwidth | Up to 340MHz / 3.4Gbps per channel (10.2Gbps total) |

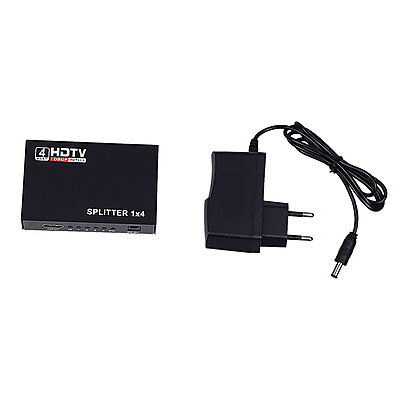

| Power Supply | DC 5V (usually via an included USB power cable or wall adapter) |
Core Features
Plug & Play: No software or driver installation required; the device automatically recognizes the connected displays.
Signal Amplification: The splitter includes a built-in buffer and amplifier. This allows you to use longer HDMI cables (typically up to 8–15 meters) without losing signal quality.
HDCP Compliant: Supports HDCP 1.2/1.3, ensuring that protected content (like Netflix or Blu-ray) can be shared across screens without being blocked.
- Durable Build: Usually features a metal heat-sink casing to prevent overheating during long-term use.
- LED Indicators: Front-facing LEDs show which output ports are currently receiving an active signal.Common Use Cases
Retail/Showrooms: Displaying promotional videos on four TVs at once.
Gaming: Splitting a console signal to a TV and a dedicated capture card or second monitor.
Home Theater: Connecting one media box to both a projector and a standard television.
Security: Distributing a DVR/CCTV feed to multiple monitoring stations.
Important Notes for Setup
Duplicate Only: This device cannot extend your desktop (it will not show different windows on each screen). It only mirrors the primary screen.
Resolution Matching: If you connect a 4K TV and a 1080p TV at the same time, the splitter will typically default to the lowest common resolution (1080p) to ensure all screens can display the image.
Power: While some devices “parasite” power from the HDMI cable, it is highly recommended to use the provided 5V power supply to ensure a stable 4K signal.
