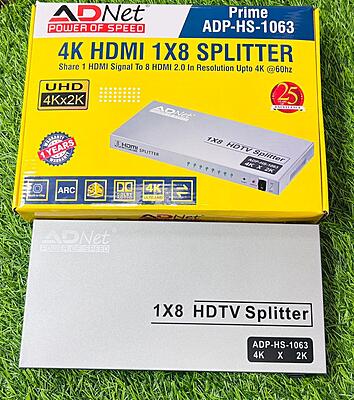

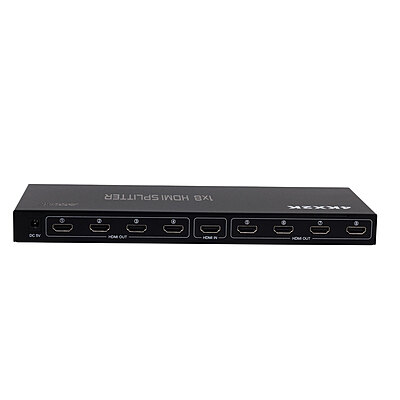

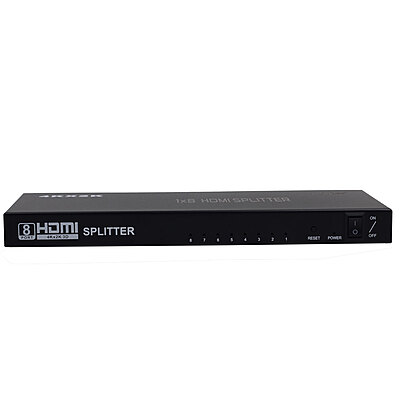

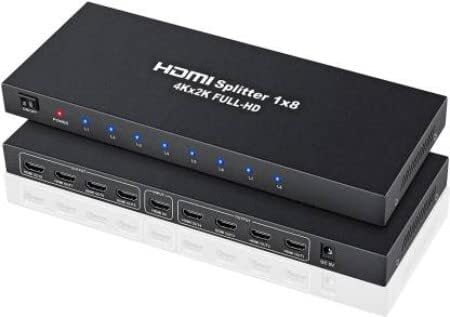

HDMI Splitter (1X8) Out Supports 3D 4K x 2K 30HZ Full HD 1080P
- Seamless Signal Duplication up to 8 HDMI port
- 4K x 2K (3840 x 2160) @ 30Hz
- Built-in Signal Amplification
- Wide Device Compatible HDMI-enabled devices
- Supports Advanced audio formats like Dolby TrueHD, DTS.
- Plug & Play Simplicity
Customize
Product Details
Technical Specifications
| Feature | Specification |
| Input Port | 1 x HDMI (Type A Female) |
| Output Ports | 8 x HDMI (Type A Female) |
| HDMI Version | HDMI 1.4b (Standard) |
| Max Resolution | 4K x 2K (3840 x 2160) @ 30Hz |
| Full HD Support | 1080p, 1080i, 720p, 576p, 480p |
| Video Bandwidth | Up to 3.4Gbps per channel (10.2Gbps total) |
| Color Support | 24/30/36-bit Deep Color |
| Audio Formats | DTS-HD, Dolby-TrueHD, LPCM 7.1, DTS, Dolby-AC3, DSD |
| Power Supply | DC 5V/2A or 5V/3A (External adapter included) |
Key Features
Signal Stabilization: Includes built-in automatic equalization and signal amplification, ensuring that the video remains crisp across all 8 outputs even with longer cable runs (up to 15 meters).
Plug & Play: No software installation required; the hardware handles all handshaking between the source and the monitors.
HDCP Compliance: Supports HDCP 1.4, allowing you to stream protected content (like Blu-ray or streaming apps) to multiple screens without “blackout” errors.
Metal Chassis: Designed with a heavy-duty metal housing for efficient heat dissipation, making it suitable for 24/7 operation in commercial settings.
Cascading Support: Multiple units can be “daisy-chained” together if you need to support more than 8 screens (e.g., connecting one output to a second 1×8 splitter).
Important Usage Tips
Mirroring Only: Just like the 4-port version, this device duplicates the image. It does not allow you to extend your desktop to 8 different independent windows.
Resolution Balancing: If your displays have different native resolutions (e.g., seven 4K TVs and one 1080p monitor), the splitter will typically downscale the signal to 1080p for all screens to ensure everyone gets a picture.
Cable Quality: For 4K signals, it is highly recommended to use AWG26 HDMI 1.4 (or higher) cables. For distances over 10 meters, high-quality shielded cables are necessary to prevent flickering.
