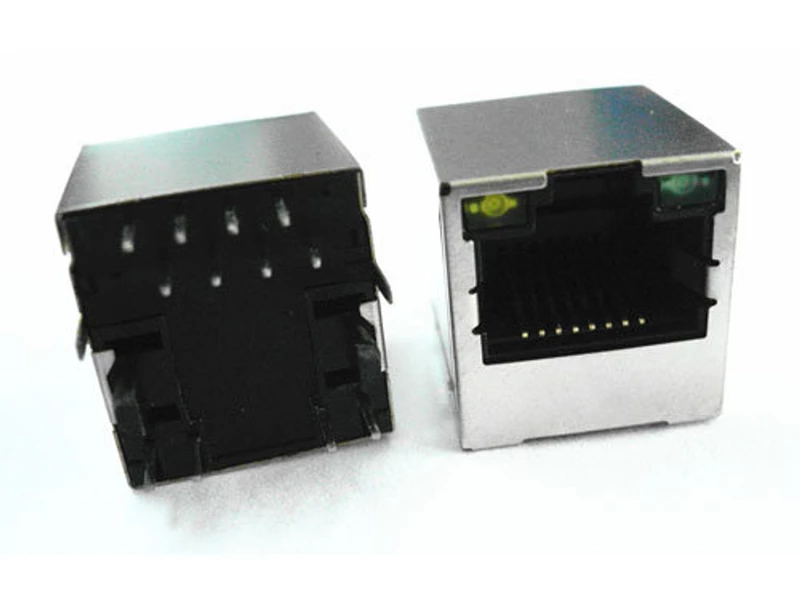

HY951180A - 1Port Upright RJ45 Connector with Magnetics Module & LED

High-Speed Networking with an RJ45 Connector port with led

Network errors or slow data speeds often stem from poor physical connections on the PCB. This RJ45 Connector port with led features an integrated magnetics module to filter out noise. Because it uses an upright design, it saves valuable space on your circuit board. You can now build or repair networking equipment that meets modern speed and reliability standards.

Advanced HY951180A RJ45 port features

The HY951180A RJ45 port includes built-in LEDs to provide instant status updates. It specifically shows link activity and speed, which simplifies the troubleshooting process. Since it contains internal magnetics, it also protects your sensitive electronics from static discharge. Using an RJ45 Connector port with led ensures a stable internet connection for your hardware.

Reliable Build and Performance

This RJ45 Connector port with led is built to withstand thousands of insertion cycles. While standard ports might become loose, this upright version remains securely attached to the board. It also features a shielded housing to prevent interference from nearby components. Consequently, the HY951180A RJ45 port is the preferred choice for professional networking gear.

• Integrated Magnetics – Filters signal noise and provides electrical isolation.

• Dual LED Status – Provides visual feedback for power and data transmission.

• Upright Orientation – Optimizes PCB layout for compact electronic devices.

• Shielded Design – Protects against EMI and RFI for cleaner data flow.

Technical Specifications

Compatibility Table

Installing the HY951180A RJ45 port

Ensure your soldering iron is at the correct temperature when installing the HY951180A RJ45 port. A clean connection on the RJ45 Connector port with led prevents intermittent packet loss. Always check the LED polarity so you get accurate visual feedback from your network device.
