PCB Ruler for Quick SMD Footprint & Dimensions Query

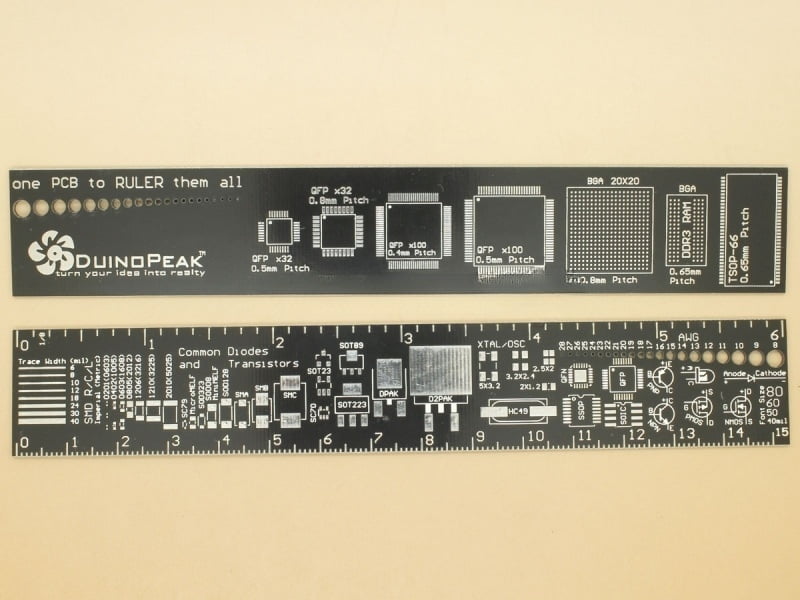

The PCB Ruler for Quick SMD Footprint & Dimensions Query is a practical tool designed to speed up the measuring and verification of surface-mount device (SMD) footprints on printed circuit boards. Tailored for electronics professionals and hobbyists, it facilitates rapid dimension checks to ensure component compatibility and accurate PCB layout planning. This compact ruler incorporates precise markings suited for various SMD package sizes, making it essential for quality control and design accuracy in electronics assembly and prototyping.

• Accurate measurement scales designed specifically for common SMD package dimensions, enabling swift footprint verification.
• Compact and lightweight design for easy portability and convenient use directly at workstations or on the go.
• Durable construction ensures long-lasting reliability even under frequent handling in busy electronics environments.
• Compatible with a wide range of components, from small 0402 packages to larger SOIC and QFP footprints.
• Enhances precision in PCB design by providing quick visual checks that reduce layout errors and assembly issues.
• Clear and easy-to-read markings that improve workflow efficiency by minimizing guesswork during component placement.
• Ideal for electronics engineers, technicians, and hobbyists involved in circuit board design and inspection.
