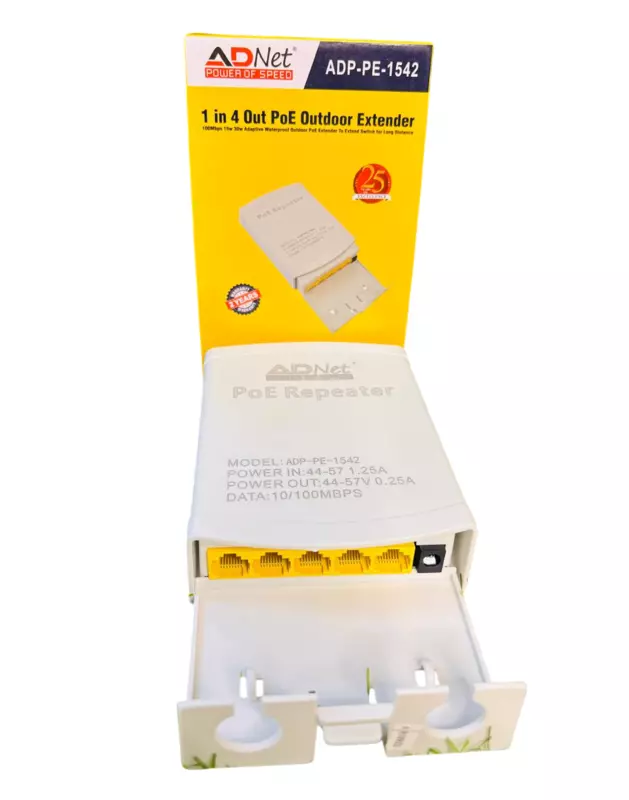

POE Out Door Extender/Switch/Booster 1-in 4-out water proof IP-55, (15w,30w )
Core Specifications
Model: ADP-PE-1542
Configuration: 1 Port PoE Input to 4 Ports PoE Output.
Speed: 10/100 Mbps Fast Ethernet.
Weatherproofing: IP66 or IP67 rated (Waterproof and Dustproof).
PoE Standards: Supports IEEE 802.3af/at/bt (Higher input power support to handle four devices).
Key Features
1. Rugged Waterproof Housing
The device is encased in an industrial-grade, weather-sealed enclosure. It is designed to be mounted on outdoor walls or poles, resisting rain, snow, and extreme dust without requiring an additional protective cabinet.
2. High-Efficiency Power Distribution
Because this device powers up to four devices, it is typically designed to work with PoE++ (60W-90W) injectors or switches at the source. It intelligently negotiates power to ensure each of the four connected devices (like cameras or outdoor APs) receives a stable voltage.
3. Extended Transmission
Like its indoor siblings, it extends the Ethernet signal for another 100 meters. By placing this at the 100-meter mark, you can effectively deploy a cluster of four cameras up to 200 meters away from your main switch.
4. Self-Powered Design
No external electrical wiring is needed at the installation site. It “harvests” its operating power from the uplink PoE cable, making it perfect for parking lots, perimeter fences, and rooftops.
Ideal Use Cases
Large Scale Surveillance: Connecting four corner-mounted cameras on a building using a single uplink cable.
Outdoor Wi-Fi: Powering multiple outdoor Wireless Access Points across a campus or park.
Industrial Sites: Providing connectivity in dusty warehouses or wash-down areas where standard electronics would fail.
