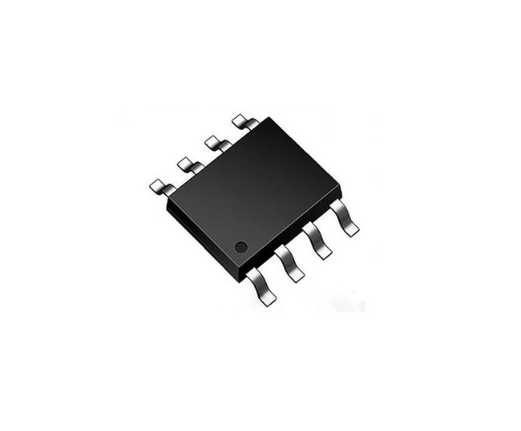

TP4056 - 4.2V 1A Standalone Linear Li-ion Battery Charger with Thermal Regulation SOP8
SKU - PBEV04056
â‚ą17.94
â‚ą80.00
- Buy from 1 to 49 products @ â‚ą17.94 per item
- Buy from 50 to 99 products @ â‚ą9.15 per item
- Buy from 100 to 199 products @ â‚ą8.37 per item
- Buy from 200 to 499 products @ â‚ą7.73 per item
- Buy above 500 @ â‚ą7.05 per item
Show more
Customize
In stock:
100
Product Details
The TP4056 is a widely used standalone linear battery charger IC designed for charging single-cell Lithium-ion and Lithium-polymer batteries. With an integrated constant-current/constant-voltage (CC/CV) charging algorithm, it delivers precise 4.2V output and up to 1A charging current, making it ideal for portable and USB-powered devices.
Key Features:
- Fixed 4.2V Charging Voltage: Suitable for standard Li-ion/Li-Po batteries
- Up to 1A Programmable Charging Current: Adjustable using an external resistor
- Constant Current / Constant Voltage Operation: Ensures safe and efficient charging
- Thermal Regulation: Automatically reduces charging current to prevent overheating
- Automatic Charge Termination: Stops charging when the battery reaches full capacity
- Recharge Function: Restarts charging when battery voltage drops below threshold
- No External MOSFET Required: Simplifies circuit design
- SOP-8 Package: Easy to mount and widely supported
Applications:
- Power banks and portable chargers
- Mobile phones and handheld electronics
- Bluetooth devices and wearables
- DIY battery charging modules
- USB-powered gadgets and IoT devices
